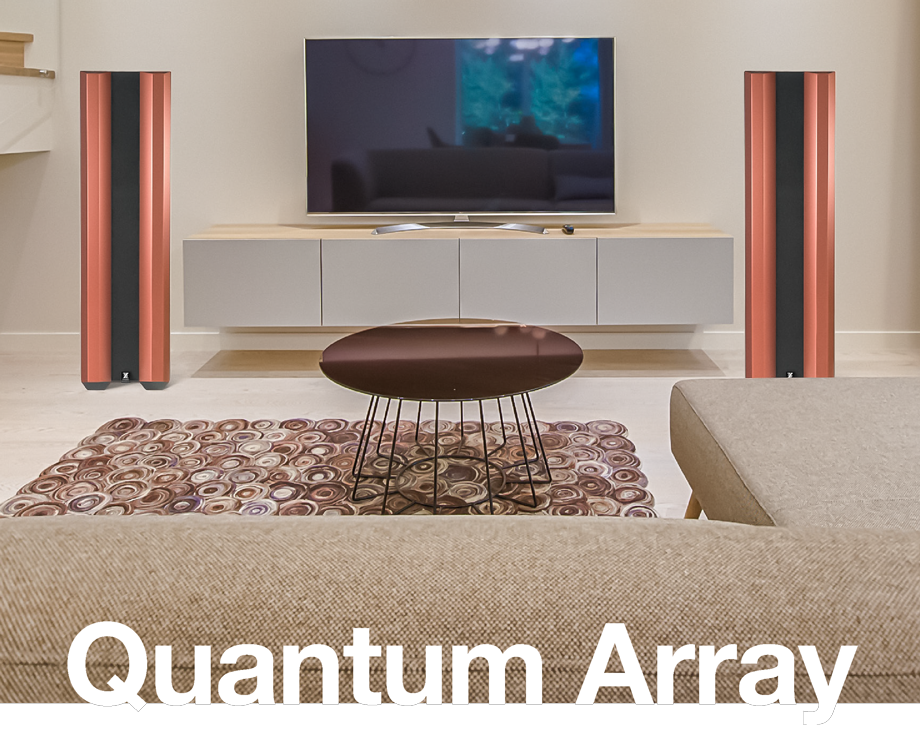

Zingali Quantum Array

The all-new and revolutionary Quantum Array series, it is Zingali’s first series to benefit from Kompressor Array Technology. All customers who are already listening to Quantum Array speakers have confirmed to us the extraordinary sensation of having no longer a sound reproduced as the classic loudspeakers do, but of being immersed in a live sound, especially as regards to the voice. In addition, their aesthetic appearance is even more revolutionary. It is a futuristic speaker that is enjoying a great success among interior designers because it can be easily placed in all environments, from the modern to the classic one, also using the combination of various colors and finishes. In fact, it is possible to have the wooden parts in a satin or lacquered finish in combination with the satin black or satin white cabinet.

Quantum Array 2.10

Quantum Array 2.8
Art. #412151<br>White Satin with White Satin Parts Art. #412133<br>White Satin with Natural Parts Art. #412135<br>White Satin with Walnut Parts Art. #412137<br>White Satin with Cherry Parts
Art. #411940<br>Black Satin with Black Satin Parts Art. #412083<br>Black Satin with Natural Parts Art. #411938<br>Black Satin with Walnut Parts Art. #411939<br>Black Satin with Cherry Parts Art. #412105<br>White Satin with White Satin Parts Art. #412087<br>White Satin with Natural Parts Art. #412089<br>White Satin with Walnut Parts Art. #412091<br>White Satin with Cherry Parts


2.10 Specifications

  • System type: Bass Reflex
  • Driver: 1 inch - Coil 38 mm
  • Woofer: 2 x 10 inch Coil 50 mm
  • Horn: Omniray Two 10 inch
  • Power RMS: 500 W (AES)
  • Nominal impedance: 6.2 Ohm
  • Frequency response: 28 Hz - 21 kHz
  • Crossover frquency: 1000 Hz 12 dB/Oct
  • Snesitivity: 96 dB (1W/1mt)
  • Dispersion: 90°V - 60°H -6dB
  • Dimensions in mm (H x W x D):
    1080 x 340 x 560
  • Net weight: 50 kg

2.8 Specifications

  • System type: Bass Reflex
  • Driver: 1 inch - Coil 38 mm
  • Woofer: 2 x 8 inch Coil 50 mm
  • Horn: Omniray Two 8 inch
  • Power RMS: 200 W (AES)
  • Nominal impedance: 6.2 Ohm
  • Frequency response: 32 Hz - 21 kHz
  • Crossover frquency: 1200 Hz 12 dB/Oct
  • Snesitivity: 93 dB (1W/1mt)
  • Dispersion: 90°V - 60°H -6dB
  • Dimensions in mm (H x W x D):
    950 x 280 x 450
  • Net weight: 25 kg


Quantum Array 3.10

Quantum Array 3.8
Art. #411956<br>Black Satin with Black Satin Parts Art. #412152<br>Black Satin with Natural Parts Art. #411954<br>Black Satin with Walnut Parts Art. #411955<br>Black Satin with Cherry Parts Art. #412174<br>White Satin with White Satin Parts Art. #412156<br>White Satin with Natural Parts Art. #412158<br>White Satin with Walnut Parts Art. #412160<br>White Satin with Cherry Parts
Art. #411950<br>Black Satin with Black Satin Parts Art. #412106<br>Black Satin with Natural Parts Art. #411941<br>Black Satin with Walnut Parts Art. #411944<br>Black Satin with Cherry Parts Art. #412128<br>White Satin with White Satin Parts Art. #412110<br>White Satin with Natural Parts Art. #412112<br>White Satin with Walnut Parts Art. #412114<br>White Satin with Cherry Parts


3.10 Specifications

  • System type: Bass Reflex
  • Driver: 1 inch - Coil 38 mm
  • Woofer: 1 x 10 inch Coil 64 mm
  • Horn: Omniray Two 10 inch
  • Power RMS: 750 W (AES)
  • Nominal impedance: 5.3 Ohm
  • Frequency response: 27 Hz - 21 kHz
  • Crossover frquency: 300 Hz 12 dB/Oct, 1000 Hz 12 dB/Oct
  • Snesitivity: 97 dB (1W/1mt)
  • Dispersion: 90°V - 60°H -6dB
  • Dimensions in mm (H x W x D):
    1320 x 340 x 560
  • Net weight: 60 kg

3.8 Specifications

  • System type: Bass Reflex
  • Driver: 1 inch - Coil 38 mm
  • Woofer: 3 x 8 inch Coil 50 mm
  • Horn: Omniray Two 8 inch
  • Power RMS: 300 W (AES)
  • Nominal impedance: 5.3 Ohm
  • Frequency response: 30 Hz - 21 kHz
  • Crossover frquency: 1200 Hz 12 dB/Oct
  • Snesitivity: 94 dB (1W/1mt)
  • Dispersion: 90°V - 60°H -6dB
  • Dimensions in mm (H x W x D):
    1120 x 300 x 450
  • Net weight: 30 kg
